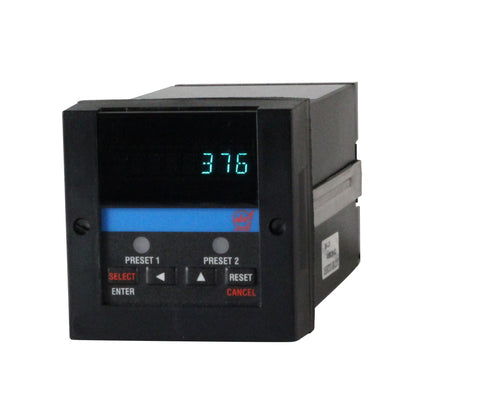

376B Series Digital Counter

The 376B is available as a Single Preset or a Dual Preset Counter. The Dual Preset Counter can be set as a Batch Counter. Both the Single Preset and the Dual Preset versions have an internal Totalizing Counter which will accumulate counts over numerous cycles. The 376B can be set up for Interval HIGH SPEED COUNTING: The Single Preset 376B counts at a maximum frequency of 10 kHz. In addition to its high speed capabilities, a debounce circuit can be enabled to limit the count frequency to 100 Hz.

• 6 Digit Count Display
• Single Preset, Dual Preset, Batch Counting Modes
• Interval Counting Mode with Separate Start
• Count with Inhibit Mode
• Internal Totalizing Counter
• 6 Decimal Point Positions
• 72mm2 Panel – Dust, Water Tight
• Plug-in Housing (Quick Replacement)
• Sinking, Sourcing, TTL Inputs
• Relay or Transistor Outputs
