UL Listed and UL-Certified Industrial Controls
ATC Diversified Electronics offers a broad selection of UL Listed and UL-certified industrial controls for automation, motor protection, power monitoring, pump control, process equipment, HVAC systems, water and wastewater applications, OEM machinery, and industrial control panels.
The collection includes industrial timers, phase and voltage monitors, current monitoring relays, alternating relays and pump controllers, isolated switches, submersible pump monitors, 24 VDC power supplies, current transformers, multifunction power meters, and advanced motor monitoring equipment.
UL certification status varies by product family and part number. Individual ATC products may be identified as UL Listed, UL Recognized, cULus Listed, evaluated to UL 508 requirements, or incorporated into UL508A-rated equipment. Always review the product marking, specification sheet, and applicable certification information for the exact model being specified.
Why Specify UL-Certified Industrial Components?
Third-Party Evaluation: A UL certification mark indicates that representative products have been evaluated to applicable requirements within the scope of that certification.
Industrial Control Applications: ATC offers UL-certified options for machine control, motor protection, electrical monitoring, pump sequencing, timing, current monitoring, power conversion, and other industrial functions.
OEM and Control-Panel Integration: Products evaluated to applicable UL requirements can support OEMs, machine builders, system integrators, and panel builders when selecting components for equipment that must meet defined electrical-safety requirements.
Multiple Product Categories: UL-certified options are available across several ATC product families, allowing engineers to address timing, monitoring, sequencing, motor control, and power-system requirements from one product portfolio.
UL Listed DIN Rail Timers and Time Relays
ATC offers several UL-listed and UL 508 timer options for industrial automation and control panels. The collection includes the 175MD, 175MU, and 175SO-110 as well as DTA100USD, DTB100USD, DTF100USD, and DTT100USD DIN rail time-relay families.
Depending on the model, functions include ON-delay, true OFF-delay, multifunction timing, inhibit delay, asymmetric repeat-cycle timing, and flasher operation. Timing ranges, supply voltages, output contacts, and certifications vary by model.
UL Listed Analog and Percentage Timers

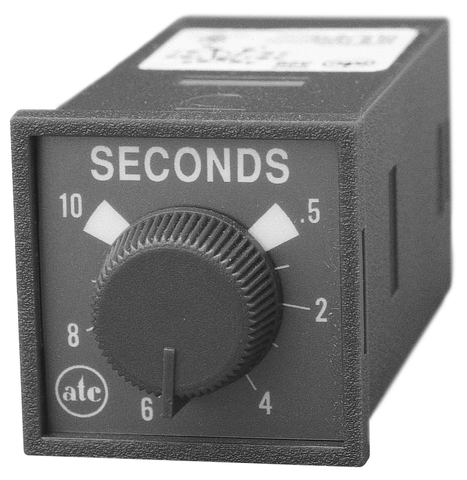

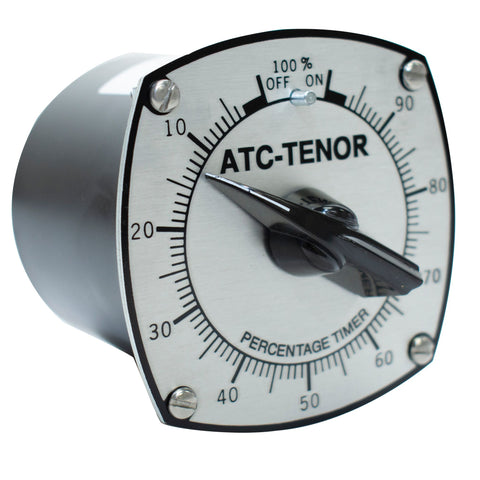

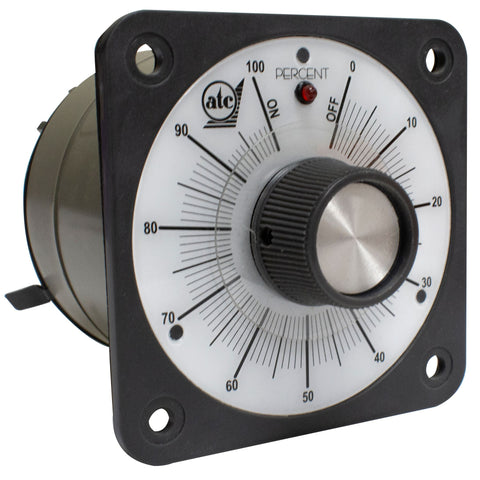

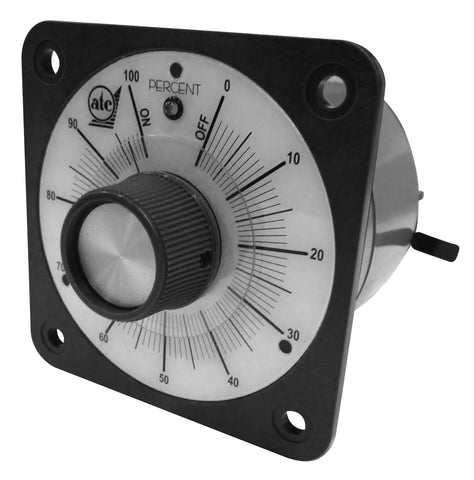

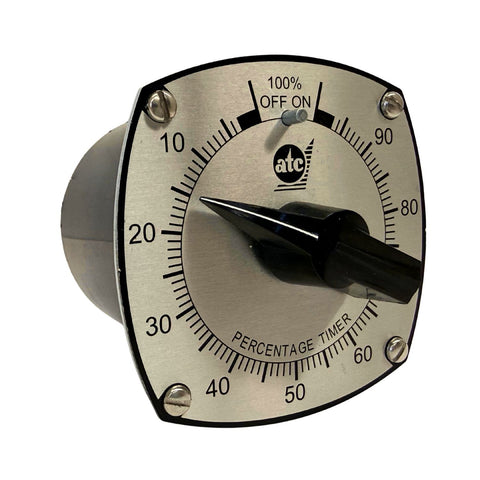

ATC's UL product range also includes 304G and 304GX solid-state percentage timers, the CP Series Percentage Timer, and the 329A Time Delay Relay.
The 304G and 304GX provide adjustable percentage-based cyclic control, while the 304GX adds cycle-progress memory. The 329A provides dedicated ON-delay operation in an 8-pin octal plug-in format.
UL Phase and Voltage Monitoring Relays

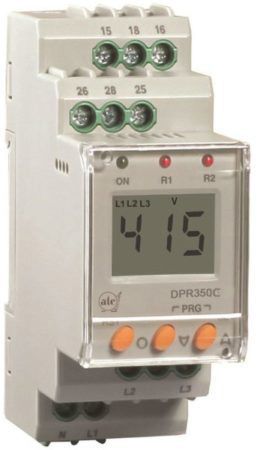

ATC offers an extensive range of UL phase monitors and three-phase voltage monitoring relays for detecting abnormal electrical conditions in motors, pumps, compressors, HVAC equipment, and industrial machinery.

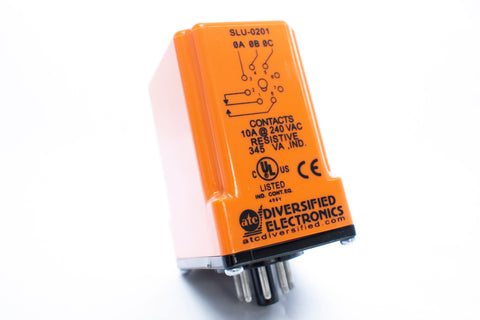

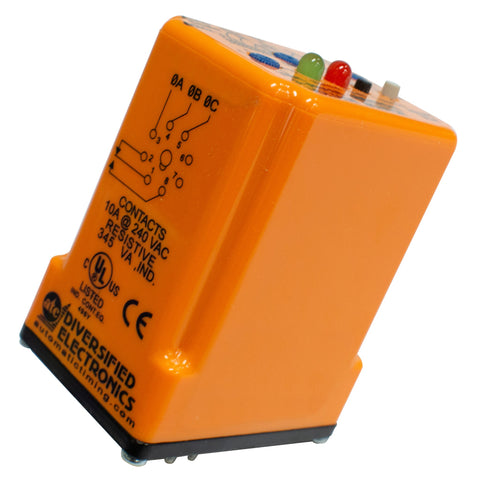

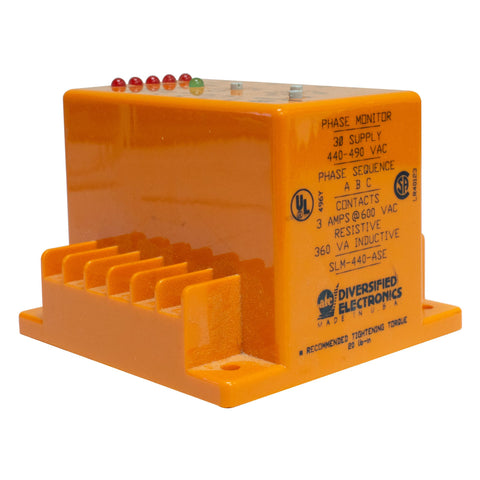

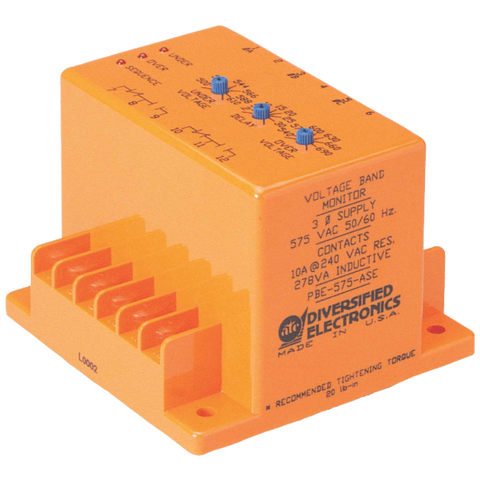

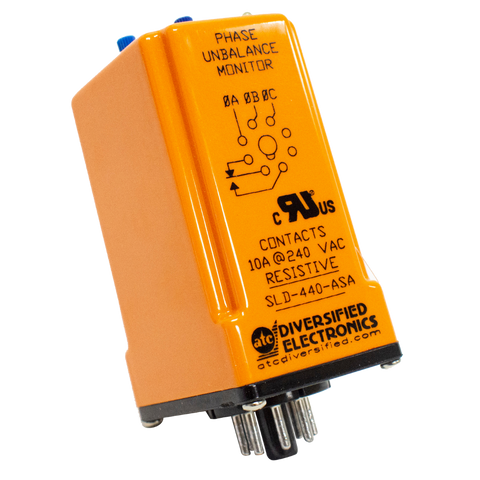

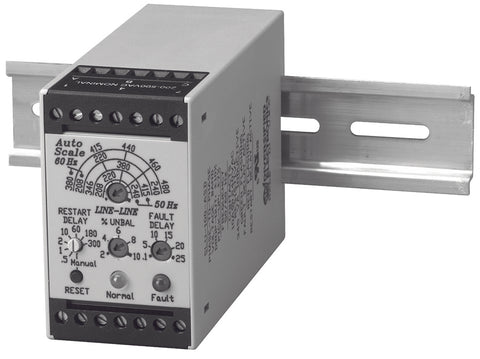

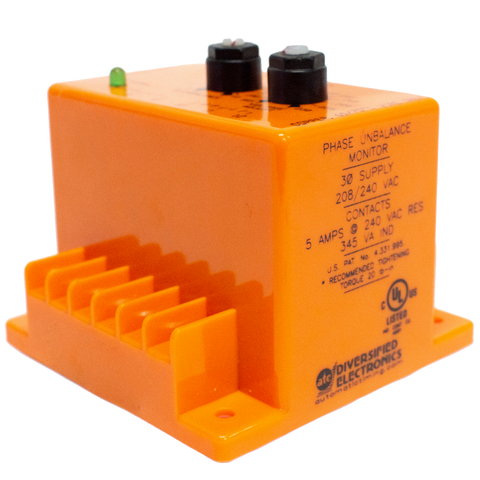

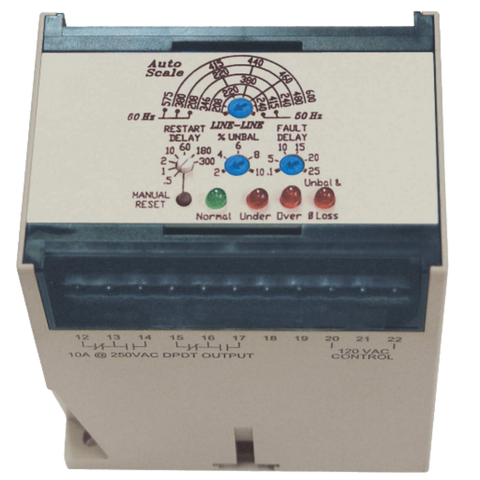

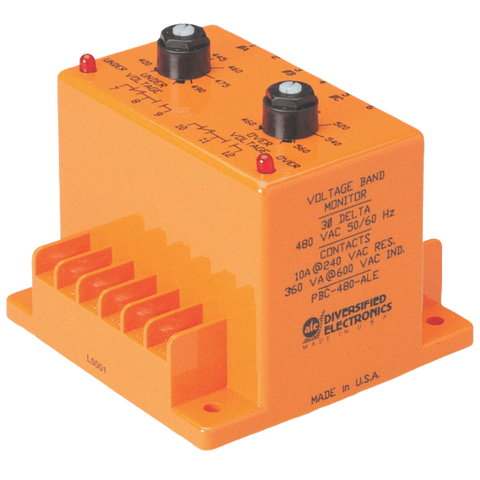

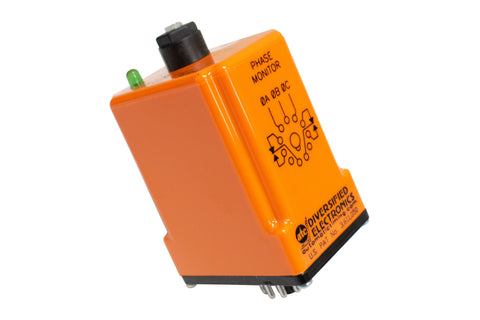

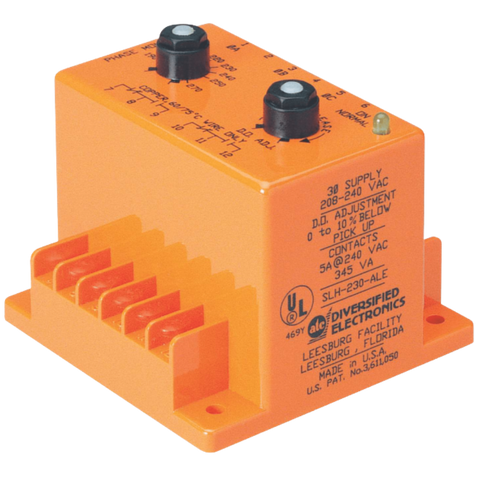

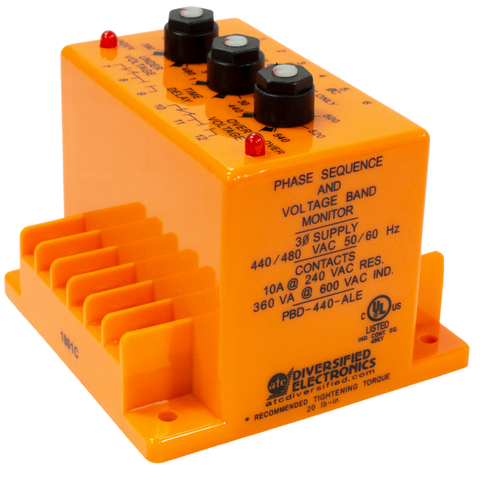

Available families include DPR, PBC, PBD, PBE, SLA, SLD, SLE, SLH, SLM, and SLU Series monitors. Depending on the model, monitored conditions can include phase loss, phase reversal, undervoltage, overvoltage, phase unbalance, voltage unbalance, rapid cycling, and improper phase sequence.
Because protective functions differ by model, the required fault conditions, voltage range, delay settings, reset behavior, and output configuration should be identified before selecting a phase monitor.
UL Current Monitoring Relays
The CMU100USD DIN Rail Multifunction AC Current Monitoring Relay provides overcurrent, undercurrent, and window monitoring in a compact DIN rail enclosure.
The CMU100USD provides automatic and manual reset options, universal supply capability, and the ability to extend its current range through an external current transformer. ATC identifies the product as UL 508 approved.
UL Alternating Relays and Pump Controllers

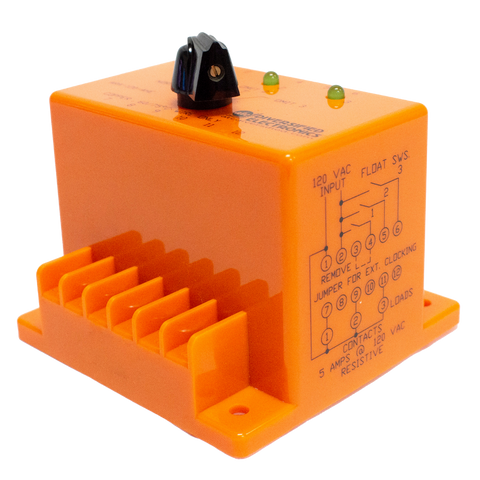

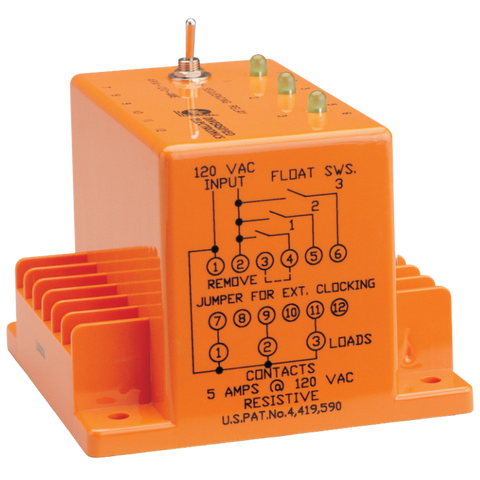

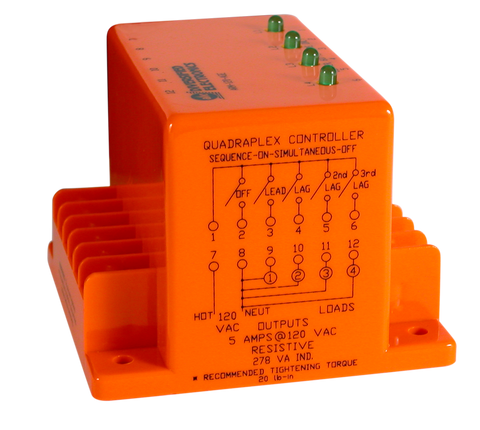

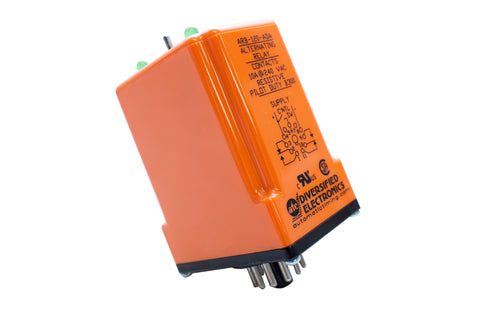

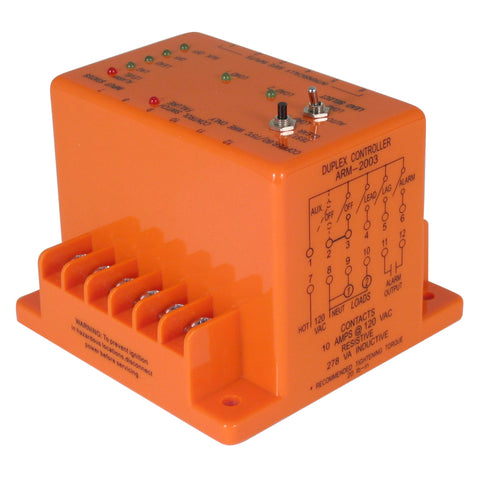

ATC offers several alternating-relay and controller families for duplex, triplex, and quadraplex pump or load sequencing. Products include ARA/ARB Duplexor relays, expandable alternating relays, special-function alternating relays, Triplexor controls, and ARM Series controllers.
Depending on the model, functions include automatic lead alternation, lead/lag sequencing, multi-load staging, lead selection, load omission, external alternation, alarm outputs, and Hand-Off-Auto controls.
These products are particularly relevant to pump stations, lift stations, water and wastewater systems, HVAC equipment, and other applications where operating time should be distributed across multiple loads.
UL Isolated Switches and Intrinsically Safe Interfaces

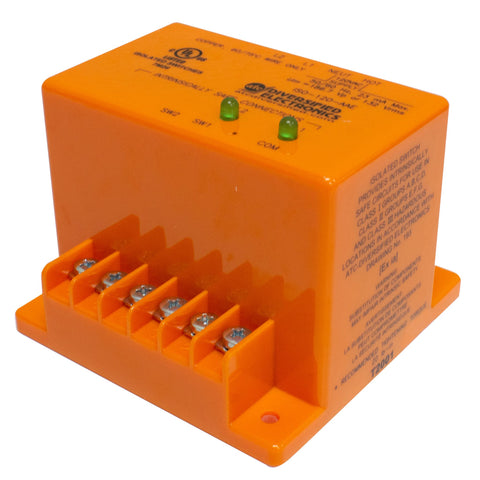

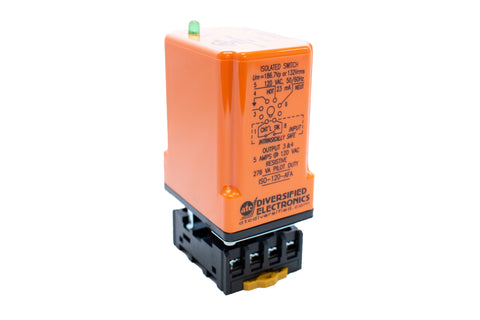

The ISO and ISO/ISL Series isolated switches provide an interface between compatible control switches in hazardous locations and isolated outputs on the control side of the system.
Single- and multiple-channel configurations are available, including non-latching ISO and selected latching ISL functions. These devices are used where intrinsically safe field circuits must interface with industrial control equipment.
Intrinsic safety applies to the complete circuit. The associated apparatus, field device, wiring, entity parameters, installation method, and applicable control drawing must all be reviewed for the specific hazardous-location application.
UL Submersible Pump Monitors

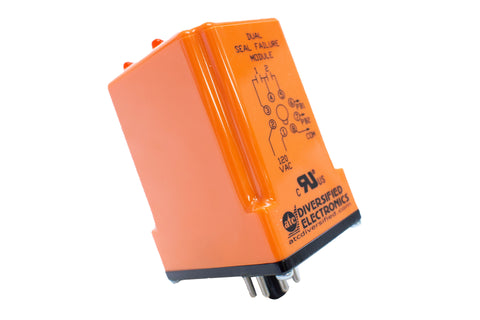

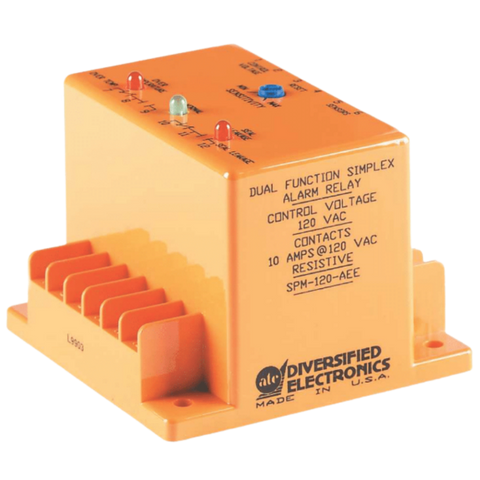

ATC's SPM Series provides monitoring for submersible pumps using seal-failure probes, temperature switches, or both depending on the model.

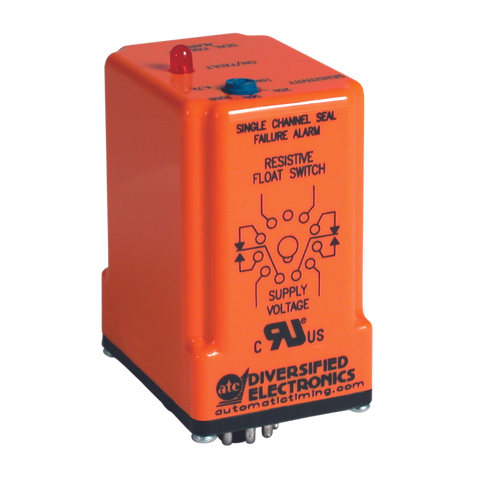

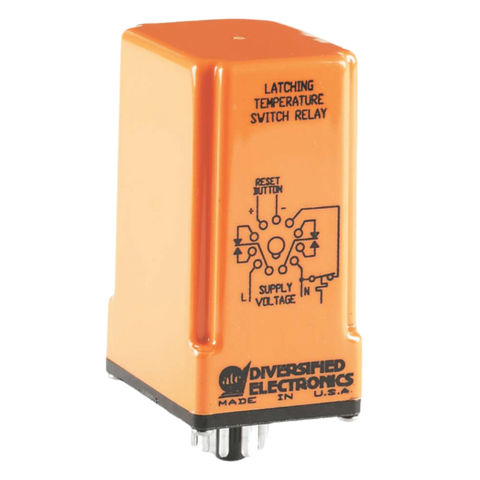

Available products include single-channel seal failure alarms, dual-channel seal failure alarms, dual-function seal and temperature monitors, and temperature-switch relays.
These products are commonly applied in water and wastewater systems, sewage equipment, lift stations, pumping systems, and other installations using compatible submersible motors and pumps.
UL 24V DC Industrial Power Supplies
The ATCPWR Series Industrial 24V Power Supplies provides regulated 24 VDC power for control panels and industrial equipment in 60W, 120W, 240W, and 480W configurations.
The series supports approximately 90-264 VAC or 127-370 VDC input, includes active power factor correction, and provides protection against short circuit, overload, overvoltage, and over-temperature conditions. ATC identifies the series as cULus listed and UL 508 approved.
UL Power Monitoring and Multifunction Metering
The VCFP96M 3-Phase Multifunction Power Meter provides electrical measurement for single-phase and three-phase systems.
Measurements include voltage, current, frequency, power factor, active, reactive, and apparent power, energy, neutral current, and total harmonic distortion through the 31st harmonic. RS485 Modbus RTU communication allows connection to compatible PLC, RTU, SCADA, computer, and data-logging systems.
UL Current Transformers

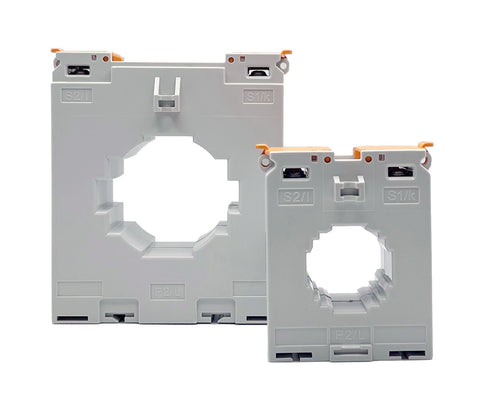

ATC current transformers provide current-sensing options for compatible electrical monitoring and motor-protection equipment. Available CT ratios and physical configurations allow current measurements to be matched to the monitored load and connected instrument.
Current-transformer ratio, accuracy class, conductor size, mounting, secondary requirements, and compatibility with the connected instrument should be confirmed before selection.
Motor Director™ and UL508A Motor Monitoring

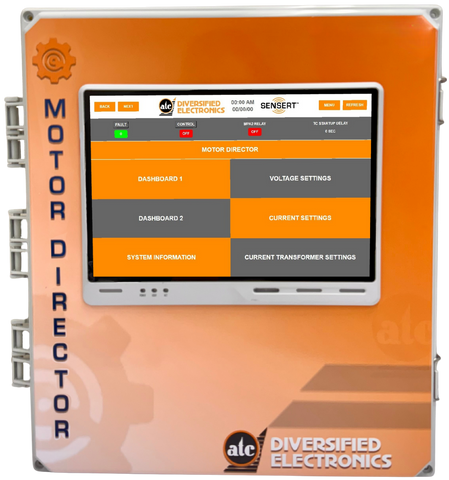

Motor Director™ combines advanced electrical and condition-based motor monitoring in an IP65 enclosure with a UL508A-rated panel.
Motor Director monitors electrical and operating parameters including voltage, current, frequency, power, reactive power, power factor, energy consumption, vibration, RPM, and temperature. It also supports RS485 and Ethernet TCP/IP communications for compatible SCADA integration.
The optional Motor Director™ AI Upgrade adds separate electrical and vibration health scores, 14-day forecasts, forecast backtesting, and AI-generated motor-health insights. Motor Director is currently designed for motors not using VFDs; consult ATC for VFD applications.
UL Listed vs. UL Recognized Components
UL Listed and UL Recognized are not interchangeable terms. A UL Listed product is evaluated as an end product within the scope of its applicable certification, while a UL Recognized Component is evaluated for use as part of a larger product or system under defined conditions of acceptability.
Because ATC offers complete controls as well as components intended for integration into larger systems, certification type should be confirmed on the exact product and part number rather than assumed from the collection name alone.
How to Select a UL-Certified ATC Product
Start by identifying the required control function, such as timing, phase monitoring, current monitoring, motor protection, pump alternation, hazardous-location interfacing, submersible-pump monitoring, power conversion, or electrical metering.
Then verify supply voltage, monitored electrical conditions, contact ratings, mounting style, communications, environmental requirements, control-system compatibility, and the UL certification applicable to the exact product and part number.
UL Listed Industrial Control FAQs
What products are included in ATC's UL Listed Products collection?
The collection includes industrial timers, phase and voltage monitors, current monitors, alternating relays and controllers, isolated switches, submersible-pump monitors, current transformers, industrial power supplies, power meters, and motor-monitoring products.
Are all products in this collection certified in exactly the same way?
No. Certification and marking vary by product family and part number. ATC product documentation uses designations including UL Listed, UL Recognized, cULus Listed, UL 508, and UL508A-related ratings. Confirm the certification on the exact product being specified.
What does UL Listed mean?
A UL Listed product has been evaluated by UL Solutions as an end product within the scope of the applicable certification requirements. The exact certification should be verified from the mark and documentation for the specific product.
What is a UL Recognized Component?
A UL Recognized Component is evaluated for use as part of another product or system under specified conditions of acceptability. It is different from a UL Listed complete end product.
Is "UL Approved" the same formal designation as UL Listed?
UL Solutions uses formal certification marks such as UL Listed, UL Classified, and UL Recognized Component. ATC product pages may use wording such as UL 508 approved, so the actual certification mark and product documentation should be reviewed when certification is a specification requirement.
Does ATC offer UL Listed DIN rail timers?
Yes. ATC identifies products including the 175MD, 175MU, and 175SO-110 as UL Listed DIN rail timers. Additional D-series DIN rail time relays are identified by ATC with UL 508 certification information.
What timing functions are available in ATC's UL timer products?
Depending on the model, available functions include ON-delay, true OFF-delay, multifunction timing, percentage timing, repeat-cycle timing, flasher operation, and inhibit-delay control.
Does ATC offer UL phase monitors?
Yes. ATC offers DPR, PBC, PBD, PBE, SLA, SLD, SLE, SLH, SLM, and SLU Series products within its UL phase-monitor categories.
What faults can ATC phase monitors detect?
Depending on the model, monitored conditions can include phase loss, phase reversal, undervoltage, overvoltage, voltage unbalance, phase unbalance, improper phase sequence, and rapid cycling.
Does ATC offer a UL current monitoring relay?
Yes. The CMU100USD provides overcurrent, undercurrent, and window current monitoring with automatic or manual reset and support for external current transformers. ATC identifies it as UL 508 approved.
Does ATC offer UL alternating relays and pump controllers?
Yes. ATC offers duplex, triplex, quadraplex, expandable, and special-function alternating relays and controllers for multi-pump and multi-load systems.
What do alternating relays do?
Alternating relays change the lead operating load between connected pumps or other equipment. Selected ATC controllers also provide lead/lag sequencing, demand staging, lead selection, load omission, alarms, and manual controls.
Does ATC offer UL isolated switches for hazardous-location control?
Yes. ATC offers single-channel ISO and multiple-channel ISO/ISL isolated switch products for compatible intrinsically safe field-control applications.
Does a UL intrinsically safe component make the entire system intrinsically safe?
No. The complete intrinsically safe circuit must satisfy the applicable control drawing, entity parameters, hazardous-location classification, field-device ratings, wiring, and installation requirements.
What UL products does ATC offer for submersible pumps?
The SPM Series includes single-channel and dual-channel seal-failure alarms, dual-function seal and over-temperature monitors, and temperature-switch relays for compatible submersible-pump applications.
Does ATC offer UL 24V DC power supplies?
Yes. The ATCPWR Series provides regulated 24 VDC output in 60W, 120W, 240W, and 480W configurations. ATC identifies the series as cULus listed and UL 508 approved.
What protection is built into ATCPWR power supplies?
ATCPWR power supplies include short-circuit, overload, overvoltage, and over-temperature protection as well as built-in active power factor correction.
Does ATC offer UL power monitoring equipment?
Yes. The VCFP96M 3-Phase Multifunction Power Meter measures voltage, current, frequency, power factor, active, reactive and apparent power, energy, neutral current, and harmonic distortion and supports RS485 Modbus RTU communication.
Is Motor Director™ UL Listed?
Motor Director is built in an IP65 enclosure with a UL508A-rated panel. When UL certification is a project requirement, review the Motor Director documentation and panel marking for the exact system configuration.
What industries use ATC UL-certified controls?
Applications include OEM machinery, packaging, material handling, plastics processing, motors and pumps, HVAC equipment, water and wastewater systems, switchgear, processing industries, utilities, power systems, and industrial control panels.
How do I choose the correct UL-certified ATC product?
Identify the required control or monitoring function first. Then confirm the supply voltage, timing or monitoring range, output contacts, electrical system, communications, mounting, environmental conditions, applicable standard, and exact UL certification or recognition for the specific part number.
