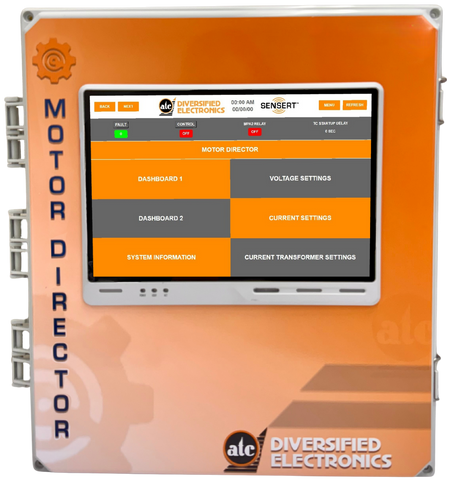

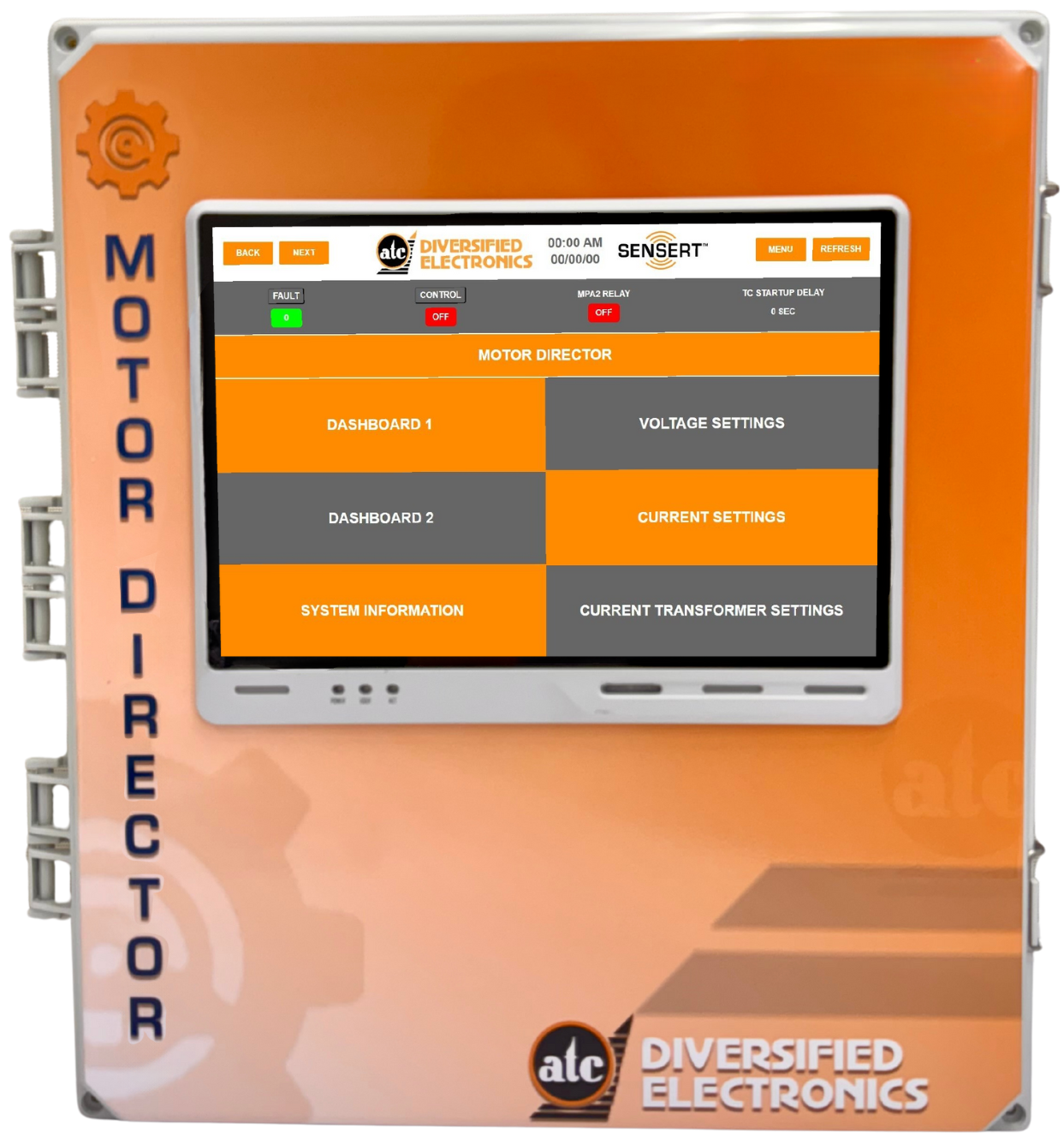

Motor Director™ Advanced Motor Monitoring and Protection System
Safeguard your critical motors with the Motor Director™ Advanced Motor Protection System. It goes beyond traditional monitoring by tracking voltage, current, frequency, power, reactive power, power factor, energy consumption, vibration, RPM, and temperature. Built with UL508A compliance, IP65 durability, and seamless SCADA integration, it delivers real-time visibility, customizable alerts, and condition-based monitoring to help minimize downtime and extend motor life.
Add the optional Motor Director™ AI Upgrade for electrical and vibration health scores, 14-day forecasts, forecast backtesting, and AI-generated motor health insights. When ordered with a new Motor Director, the AI Upgrade arrives activated and ready for use. Existing installations can be upgraded later using an activation code entered through the Motor Director HMI.
*Motor Director™ is currently designed for motors not using VFDs. For use with VFDs, please consult factory.
Features:
Add the optional Motor Director™ AI Upgrade for electrical and vibration health scores, 14-day forecasts, forecast backtesting, and AI-generated motor health insights. When ordered with a new Motor Director, the AI Upgrade arrives activated and ready for use. Existing installations can be upgraded later using an activation code entered through the Motor Director HMI.
*Motor Director™ is currently designed for motors not using VFDs. For use with VFDs, please consult factory.
- Built-in SENSERT® for remote monitoring, customizable mobile alerts, data recording, trend logging, and comprehensive reporting
- Real-time monitoring of electrical and condition-based parameters
- IP65 enclosure with UL508A-rated panel
- SCADA-ready with RS485 and Ethernet TCP/IP for external communications
- Secure system hardened against tampering and cyber threats
- Internal com ports are factory disabled to eliminate unintended connectivity and reduce exposure
- Optional wireless vibration, temperature, and thermographic sensors
- Optional Motor Director™ AI Upgrade adds 0–100 electrical and vibration health scores, 14-day forecasts, forecast backtesting, and AI-generated motor health insights.
- Motor protection guidance informed by IEEE 841-2021, IEEE 493-2007, IEEE 3004.8-2016, and ISO 10816-3-2009.
- Water/Wastewater
- Mining and Metals
- HVAC Systems
- Oil & Gas
- Automated Processes
- Energy and Utilities
- Any Critical Motor
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
