Plug-In Timers
Plug-In Timers and Time Delay Relays for Industrial Control
ATC Diversified Electronics offers a broad range of plug-in timers and time delay relays for industrial automation, OEM machinery, process equipment, motors, pumps, conveyors, packaging systems, switchgear, and other applications requiring reliable timed switching.

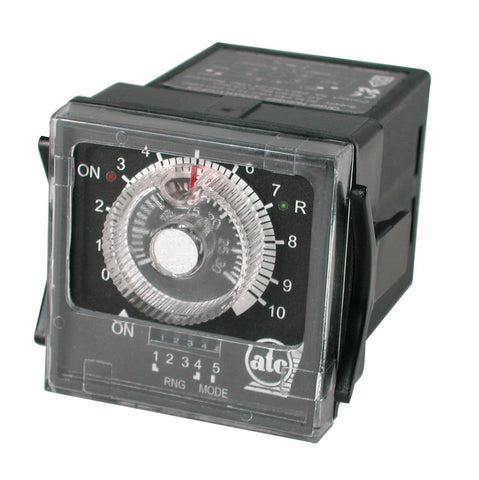

Available timing functions include ON-delay, OFF-delay, true OFF-delay, interval, single-shot, delayed interval, delayed single-shot, repeat-cycle, flasher, percentage, and programmable multi-mode operation. The collection includes adjustable plug-in TDRs, DIP-switch timers, relay-output timer families, and selected 1/16 DIN timers with plug-in mounting options.
Plug-in construction can simplify installation, replacement, and service by allowing the timer to be removed from a compatible socket without rewiring the entire control circuit. Depending on the model, ATC plug-in timers also provide multiple timing ranges, AC/DC supply capability, relay outputs, cycle-progress indication, digital displays, memory, and programmable operating modes.
Why Choose ATC Plug-In Timers?
Wide Range of Timing Functions: ATC offers dedicated and multifunction plug-in timers for common industrial timing sequences including ON-delay, OFF-delay, interval, single-shot, repeat-cycle, flasher, percentage, and true OFF-delay operation.
Socket-Based Serviceability: Many models use plug-in bases that allow the timer to be removed or replaced without disturbing the field wiring connected to the compatible socket.
Single- and Multifunction Designs: Choose a dedicated timer when one sequence is required or a multifunction model when several timing modes must be available from the same device.
Wide Timing Ranges: Depending on the product family, timing ranges extend from milliseconds through minutes and hours, supporting both fast machine sequences and longer process delays.
AC and DC Options: Selected plug-in timers support AC, DC, or universal AC/DC input power, allowing the timer to be matched to existing equipment and control-system voltages.
Analog, DIP-Switch, and Digital Adjustment: ATC offers dial-adjusted timers, DIP-switch configurable models, externally jumper-programmed timers, and digital-display products for different setup and maintenance preferences.
Industrial Replacement Options: Plug-in formats can be particularly useful when maintaining existing machinery because a compatible replacement timer can often be changed without rebuilding the surrounding control wiring.
Adjustable Plug-In Time Delay Relays
The 313B Series provides an adjustable time delay relay in a compact plug-in housing with two Form C relay contacts and a dust-, moisture-, and impact-resistant polycarbonate enclosure.
The 319E is an adjustable solid-state time delay relay with an 8-pin octal plug-in base, selectable timing ranges, DPDT relay output, LED timing indication, and broad AC/DC input capability.
The 339B provides selectable ON-delay or interval operation across six dial-selected timing ranges extending from fractions of a second to 10 hours. It also provides cycle-progress indication and is available in fixed-time configurations for applications where field adjustment is not desired.
Multifunction Plug-In Timers

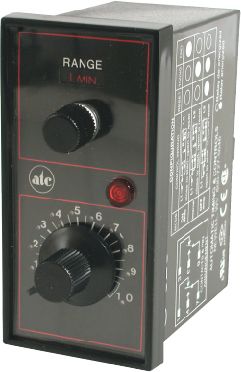

The 328E Multi-Range Multi-Function Timer combines ON-delay, OFF-delay, and interval operation in one dial-adjusted timer. Timing can be selected from 50 milliseconds through 10 hours, and cycle-progress annunciation provides visual operating feedback.
The TBU Series Programmable Multi-Mode DIP Switch TDR provides six commonly used timing modes with multiple DIP-switch timing ranges. Operating mode is selected externally using jumpers between designated base pins.
The TDU Series Programmable Multi-Mode Relay Output Timer combines four broad timing ranges, six operating modes, AC/DC operation, and a 10-amp relay output. Programming is performed externally through base pin jumpers without opening or disassembling the timer.
OFF-Delay, Interval and True OFF-Delay Plug-In Timers
The 314B is available for OFF-delay or interval-on-delay operation and provides three dial-selected ranges covering approximately 0.035 second through 100 seconds.
ATC also offers dedicated plug-in TDR families for interval, ON-delay, OFF-delay, delayed interval, delayed single-shot, and single-shot operation, allowing the timer function to closely match the required control sequence.
The TDT Series True OFF-Delay Timer energizes its relay when input voltage is applied. When voltage is removed, the OFF-delay timing period begins, and the relay remains energized until that delay expires.
Repeat-Cycle, Flasher and Percentage Plug-In Timers
ATC offers repeat-cycle timer families for both OFF-time-first and ON-time-first operation. These products continuously alternate their outputs according to the selected timing sequence while the required supply and control conditions remain present.
Flasher timers provide repeating ON/OFF operation, while percentage timers control how much of a repeating cycle the output remains energized. These functions are useful for cyclic machine, heating, signaling, and process applications.
Digital Plug-In Timer Options
Selected ATC digital timers can also be installed using plug-in mounting. The 425A Series, for example, can use an 8-pin octal plug-in configuration and provides timing from 0.01 second to 999 hours, a high-intensity LED display, selectable time-up or time-down operation, and an available EEPROM memory function.
Find the Right Plug-In Timer
Selecting the right plug-in timer or time delay relay depends on the required timing function, timing range, supply voltage, socket or base configuration, relay-contact requirements, control input, reset behavior, display or indication needs, memory requirements, and whether a fixed-function or multifunction timer is preferred.
Explore the ATC plug-in timers above to compare adjustable TDRs, multifunction timers, DIP-switch timers, relay-output timers, ON-delay, OFF-delay, true OFF-delay, interval, single-shot, repeat-cycle, flasher, percentage, and digital plug-in configurations.
Plug-In Timer FAQs
What is a plug-in timer?
A plug-in timer is an industrial timing control designed to connect to a compatible socket or plug-in base. This allows the timer to be removed or replaced without disconnecting all of the field wiring connected to the socket.
What timing functions are available in ATC plug-in timers?
ATC offers plug-in timers for ON-delay, OFF-delay, true OFF-delay, interval, single-shot, delayed interval, delayed single-shot, repeat-cycle, flasher, percentage, and programmable multi-mode timing.
What is the advantage of a plug-in timer?
A compatible plug-in timer can be removed from its socket for service or replacement without rewiring the entire control circuit. This can be useful in OEM machinery, maintenance, and replacement applications.
What is an octal plug-in timer?
An octal plug-in timer uses an eight-pin base that connects to a compatible socket. ATC products such as the 319E use an 8-pin octal plug-in base, and selected digital timers also support octal mounting.
What does the ATC 313B Series do?
The 313B is a compact adjustable plug-in time delay relay with two Form C relay contacts. It is designed for industrial timing applications requiring an adjustable plug-in TDR in a space-saving housing.
What timing range does the ATC 314B provide?
The 314B provides three dial-selected adjustable ranges covering approximately 0.035 second to 100 seconds. Separate models are available for OFF-delay and interval-on-delay operation.
What features does the ATC 319E provide?
The 319E is an adjustable solid-state time delay relay with an 8-pin octal plug-in base, multiple selectable timing ranges, universal input capability, a DPDT 7-amp relay output, and an LED that indicates when timing is in progress.
What timing functions does the ATC 328E provide?
The 328E provides selectable ON-delay, OFF-delay, and interval timing from 50 milliseconds through 10 hours. It also provides cycle-progress annunciation and is FM Approved.
What does the ATC 339B do?
The 339B is a plug-in solid-state time delay relay with selectable ON-delay or interval operation. It provides six dial-selected ranges extending from fractions of a second to 10 hours and includes cycle-progress indication.
Can ATC plug-in timers provide true OFF-delay operation?
Yes. The TDT Series provides true OFF-delay operation. Its relay energizes when input voltage is applied, and when voltage is removed, the OFF-delay period begins. The relay de-energizes after the selected delay expires.
What is a DIP-switch time delay relay?
A DIP-switch time delay relay uses small switches to configure timing ranges or related settings. ATC offers dedicated DIP-switch timers for interval, ON-delay, OFF-delay, single-shot, repeat-cycle, flasher, and programmable multi-mode applications.
What is the ATC TBU programmable timer?
The TBU Series is a programmable multi-mode DIP-switch time delay relay. It provides multiple timing ranges and six commonly used operating modes, with the timing mode selected through external jumpers between designated base pins.
What is the ATC TDU programmable multi-mode timer?
The TDU Series combines four timing ranges and six operating modes with AC/DC operation and a 10-amp relay output. Programming is performed externally using jumpers between designated base pins.
What is a repeat-cycle plug-in timer?
A repeat-cycle timer repeatedly alternates its output between timed ON and OFF states. ATC offers both OFF-time-first and ON-time-first repeat-cycle timer families.
What is a plug-in flasher timer?
A flasher timer repeatedly switches its output on and off while the required operating conditions are present. ATC offers dedicated plug-in flasher timer families for cyclic switching applications.
Does ATC offer digital plug-in timers?
Yes. Selected ATC digital timers support plug-in mounting. The 425A Series can be installed using an 8-pin octal plug-in configuration and provides a digital display, timing from 0.01 second to 999 hours, and optional EEPROM memory.
What is the difference between a fixed-function and multifunction plug-in timer?
A fixed-function timer performs one primary timing sequence, such as ON-delay or interval. A multifunction timer can be configured for several operating modes, reducing the number of different timer models needed when control requirements vary.
Where are plug-in timers used?
Plug-in timers are used in industrial automation, OEM machinery, packaging equipment, conveyors, material handling, motors and pumps, switchgear, processing equipment, heating systems, and other applications requiring controlled timed switching.
How do I choose the right plug-in timer?
Start with the required timing function and timing range. Then confirm the supply voltage, socket or pin configuration, relay-output requirements, contact rating, reset behavior, control input, adjustment method, approvals, and whether a dedicated or multifunction timer is best suited to the application.
