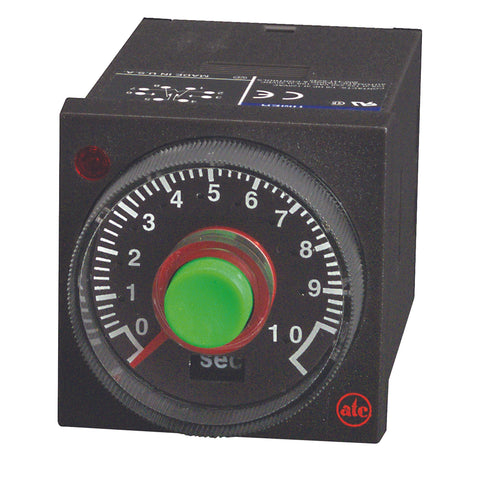

409B Series 1/16 DIN Push Button Timer

409B Series, push button timer, Electric handset timer, 1/16 DIN Push Button Timer, Electric handset timer, Electronic Timers, push button timer relay, Electronic Timers, push button timer relay
409B Series, push button timer, Electric handset timer, 1/16 DIN Push Button Timer, Electric handset timer, Electronic Timers, push button timer relay, Electronic Timers, push button timer relay
The ATC 409B DIN Push-Button Timer provides precise, reliable interval timing control for a wide range of industrial applications. Featuring a convenient front-mounted push button, six selectable timing ranges, and a universal 24–240 VAC/24 VDC power supply, the 409B offers flexibility and ease of operation. Its compact 1/16 DIN design, easy-to-read dial, and LED status indicator simplify setup and monitoring, while tamper-resistant timing range settings and high-accuracy circuitry help ensure consistent, repeatable performance.
Features:
  • Push Button Start, Interval Timing Mode
  • Push Button Integral to front dial
  • Output Contacts rated 10A at 120/240 VAC and 30 VDC
  • Six Timing Ranges in a single unit:
  • 1 and 10 sec., min., and hours
  • 5 and 50 sec., min., and hours
  • Universal Power Supply: 24-240 VAC and 24 VDC
  • 48mm2 DIN Standard housing
  • Large and easy to read dial shows decimal points
  • Round (octal) socket mount or mount in panel cutout
  • Watertight when panel mounted
  • Range and Mode select are tamper proof when panel-mounted
