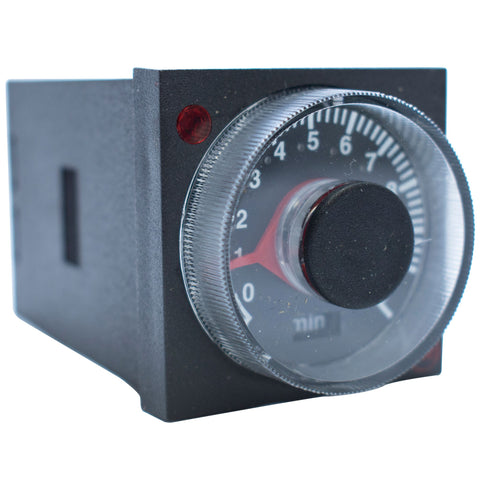

407C 1/16 DIN Multimode Off-Delay Timer
The ATC 407C DIN Multimode Timer provides precise, reliable timing control for a wide range of industrial applications. Featuring selectable ON-Delay, OFF-Delay, and Interval timing modes, six adjustable timing ranges, and a universal 24–240 VAC/24 VDC power supply, the 407C offers flexibility to meet diverse control requirements. Its compact 1/16 DIN design, easy-to-read dial, and LED cycle progress indicator simplify setup and operation, while tamper-resistant settings help ensure consistent, dependable performance.
Features:
- 1/6 DIN multimode timer
- Selectable On-Delay/Off-Delay/Interval Timing Modes
- Separate Start Input
- Output Contacts rated 10A at 120/240 VAC and 30 VDC
- Six Timing Ranges in a single unit:
- 1 and 10 sec., min., and hours
- 5 and 50 sec., min., and hours
- Universal Power Supply; 24-240 VAC and 24 VDC
- 48mm2 DIN Standard housing
- Large and easy to read dial shows decimal points
- Round (octal) socket mount or mount in panel cutout
- Watertight when panel mounted
