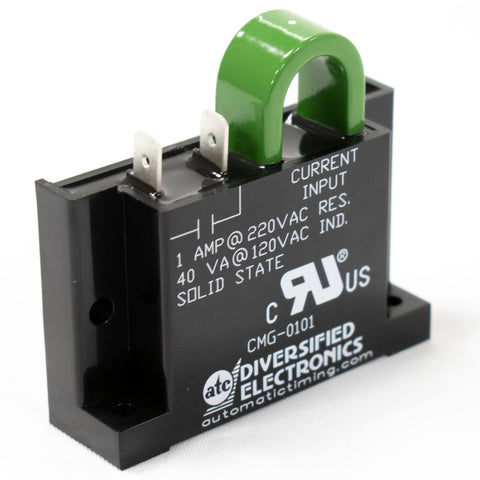

AC Go/No-Go Current Monitor (CMG-0101 Series)
The CMG-0101 Series is a solid state self powered Current Monitor
that is used to detect the presence of AC current. When the monitored
current exceeds the trip point for longer than 400 mSec., the output
energizes (Pick-up). When the monitored current drops below the
trip point for longer than 400 mSec., the output de-energizes (Dropout).
No physical connection is required as the line to be monitored is
magnetically coupled by passing the conductor through the protruding
Current Transformer of the monitor. No external supply is needed to
power the monitor.
Features:
- No physical connection to the AC line that is being monitored
- Magnetically coupled by passing supply line through protruding
- Current Transformer
- No supply voltage required
- Will operate on 24, 120, 240 or 480 VAC lines
- Easy installation
- 1/4" Quick Disconnect Terminals
- Max Continuous Current 200 Amp turns
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
