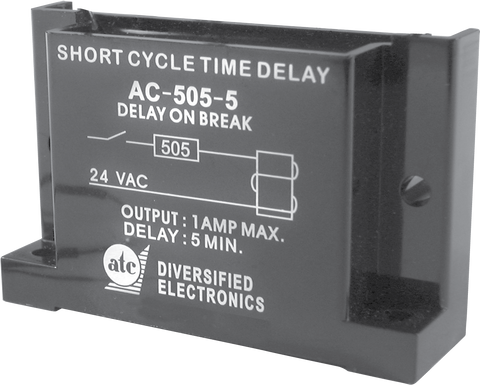

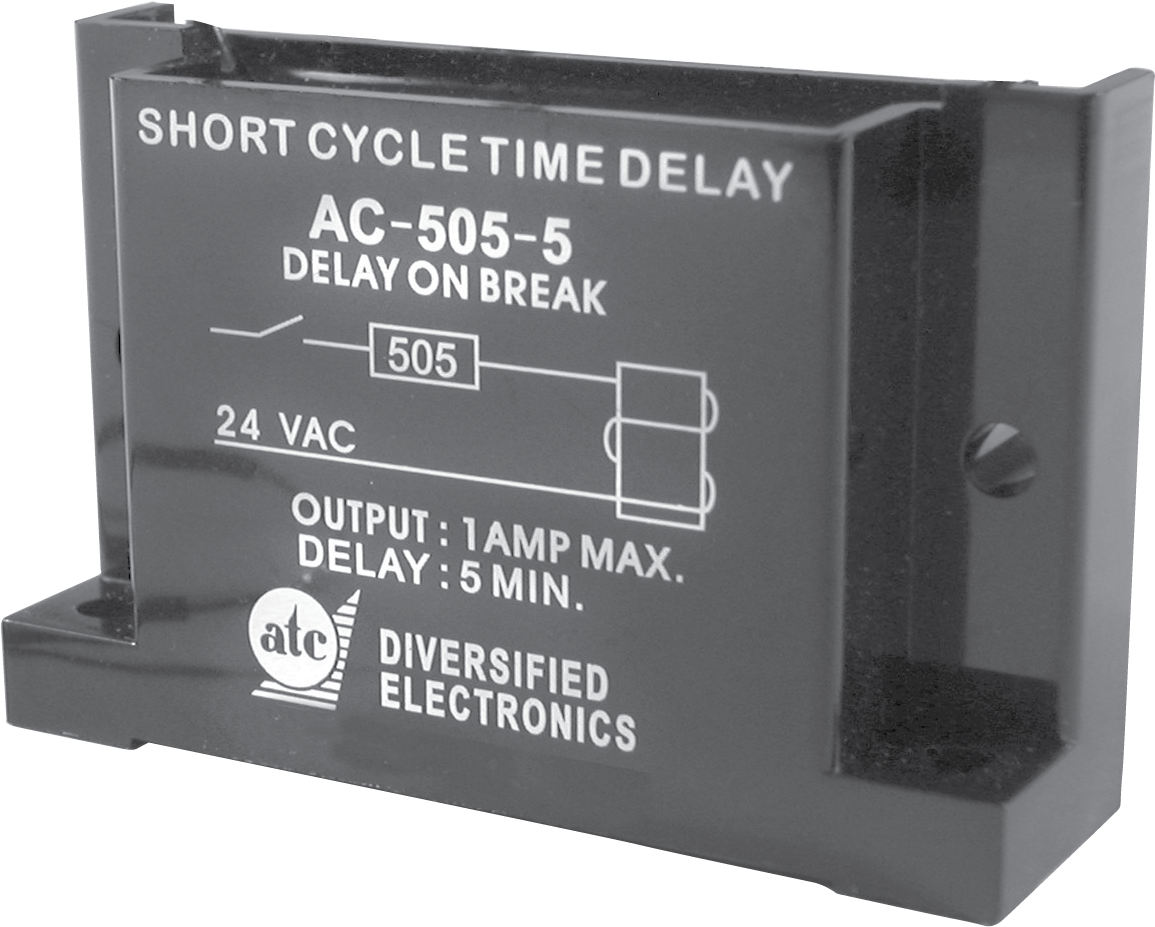

AC-505-5 Delay-On-Break Timer

The AC-505-5 provides short cycle protection by locking out the compressor for a period of time after a voltage or thermostat interruption. Subsequent interruptions will not increase the delay period. Since the delay begins when the interruption occurs, the temperature control is not affected. Under normal operating conditions, the compressor off time is longer than five (5) minutes. In this case, the use of these timers will not lengthen this off cycle. This is an easy to install, two (2) wire Short Cycle Timer that connects in series with the control voltage and control relay. The AC-505 is engineered to provide true thermostat interruption protection even when there is continuous current flow through the thermostat’s cooling anticipator.
