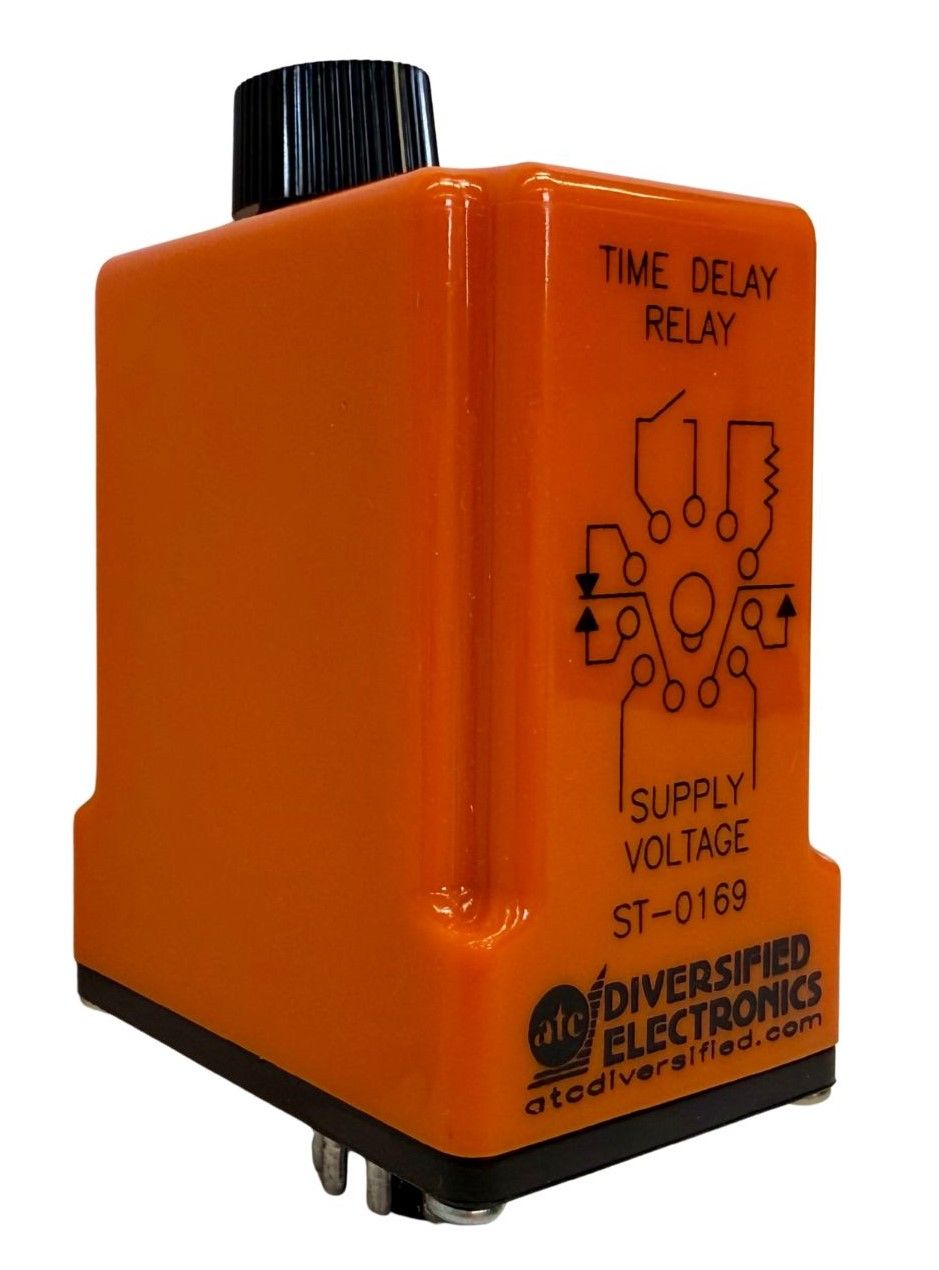

ST-0169 Delayed Single Shot Timer

The ST-0169 Delayed Single Shot Timer delivers precise OFF/ON delay control with independently adjustable timing ranges. Designed for reliable sequencing and protection, it ensures accurate operation in control panels and automated processes.

Features:

• Independent Timing Control – Adjustable OFF/ON delays (0.1–10s each).
• High Output Rating – SPST N.O. and SPDT relay, 10A @ 120 VAC/24 VDC.
• Fast Reset Times – 100 ms before timeout, 50 ms after.
• High Repeatability – ±1% accuracy with no first cycle effect.
• Long Life Expectancy – 10M mechanical / 100k electrical operations.
• Reverse Polarity Protection – Built-in safeguard for DC inputs.

Applications:

• Industrial automation including production and assembly systems
• Process control environments requiring accurate cycle timing
• Material handling systems such as conveyors and automated machinery
• Control panels and OEM equipment integration
• Testing equipment for electrical or mechanical applications
