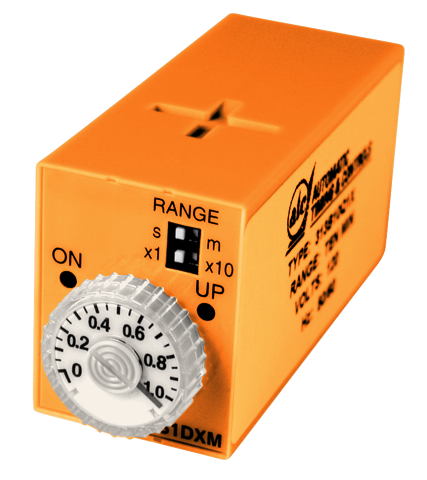

313B Series Plug-in Adjustable Time Delay Relay
Through advanced circuit design and packaging technology, the 313B Series Plug-in Adjustable Time Delay Relay packs all of the performance of a conventional plug-in TDR in a space-saving housing.
Features:
- LOAD RELAY TYPE: 2 Form C
- LIFE AC: 50,000,000 operations (no load)
- LIFE DC: 100,000,000 operations (no load)
- TEMPERATURE RATING: 15° to 120°F (-10° to 50°C)
- CONTACT RATING: 7A resistive 1/10 HP at 120V
- POWER REQUIREMENTS: 120 VAC 80 to 132V, 50/60 Hz, 20 mA 240 VAC 160 to 242V, 50/60 Hz, 13mA
- SETTING ACCURACY: ± 10% of range at full scale
- REPEAT ACCURACY ± 1% of setting or 10 ms when temperature and voltage are constant; ± 7% of setting when temperature and voltage change within specified operating limits
- RESET TIME: 0.1 SEC during timing and at least 15 ms after time out
- HOUSING: Dust, moisture and impact-resistant molded polycarbonate
- WEIGHT: NET, 2 oz; SHIPPING, 4 oz
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
