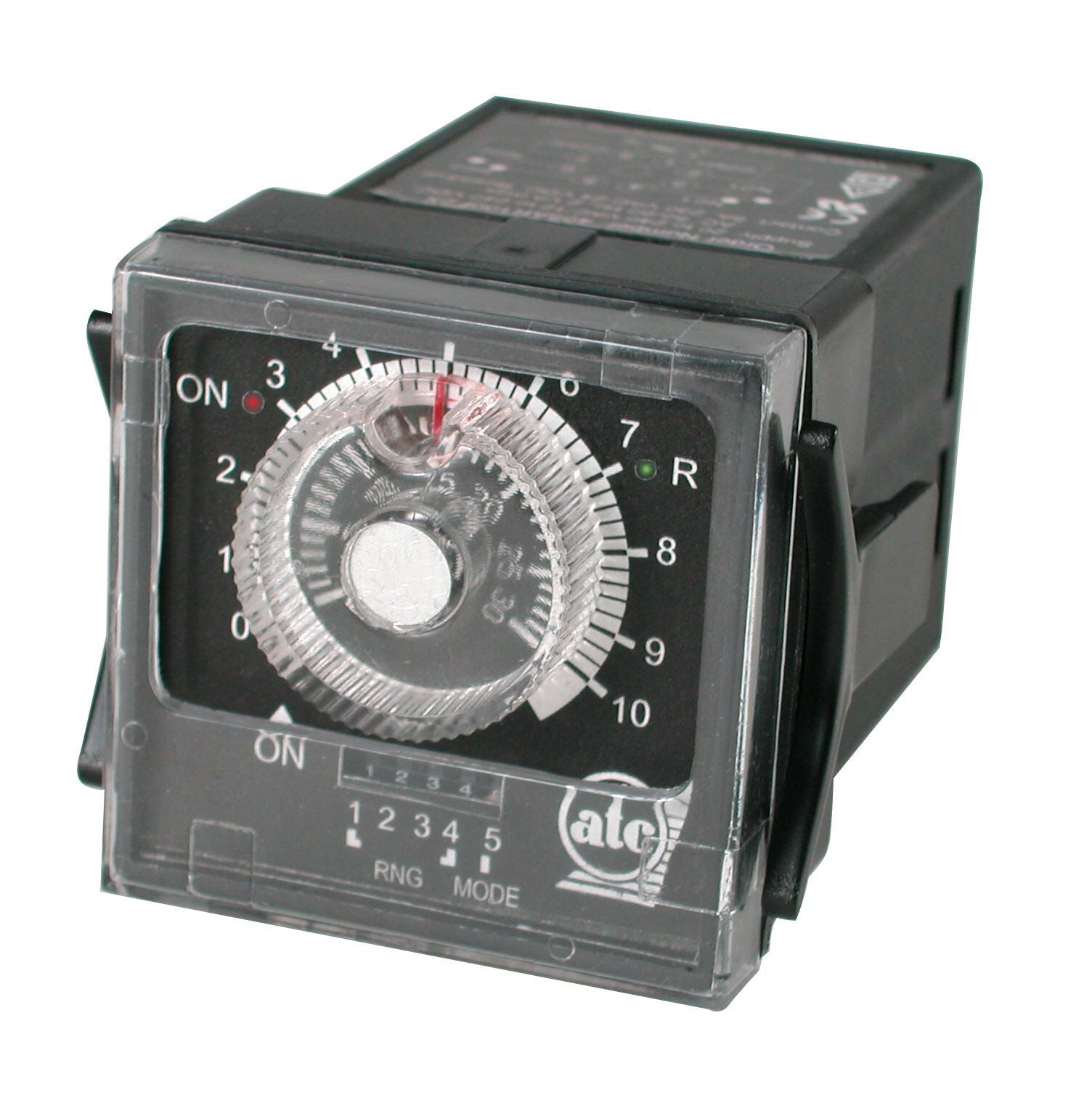

405AE Series 1/16 DIN ON Delay Interval Economical Timer

The 405AE Series 1/16 DIN ON Delay Interval Economical Timer from Automatic Timing and Controls provides multi-function timing within a single device. On Delay / Interval Timing Modes: The 405E economical timer has two modes of operation, On Delay or Interval timing modes. The unit has a set SPDT output contacts rated for 5 amps resistive. When in ON-Delay Mode, the contacts transfer at time out. When in the interval Mode, the contacts transfer when power is applied and released at time out. Power Supply: All 405AE timers can be powered using 110 VAC or 24 vac/dc reducing inventory management of replacement units.1/16 DIN Housing: The 48mm (1/16 DIN) housing is compact and rated for P40 on the face plate. The 405AE is mounted in a 8-pin round socket.

• ON Delay / Interval Mode of Operation
• 8 Timing Ranges
• 110 VAC, 24 VAC/DC Supply Voltage
• LED Status Indicator Power ON, Relay ON
• Compact Size
• Power Supply: 110vac & 24vac/dc
• 5A SPDT output contact rating
• UL Recognized, CE certified

• OEM equipment
• Packaging and plastics machinery and equipment
• Machine control
• Materials handling
• Conveyor control
• Motors and pumps
• Process industries
