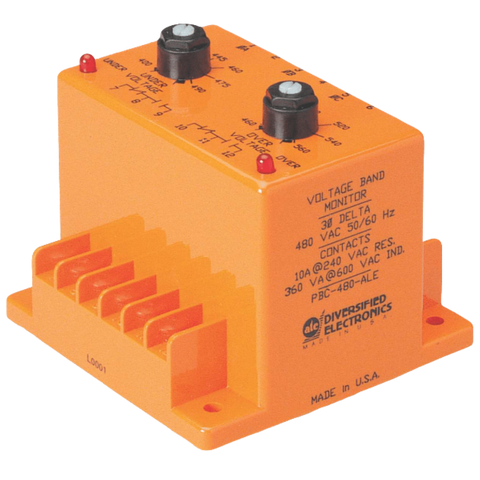

PBC Series 3-Phase Voltage Band Monitor
3 phase power monitor
The PBC Series offers protection to three-phase equipment that is required to operate between two voltage limits. All three phases are monitored individually for a pre-selected UNDER and OVER VOLTAGE limit.Operation:With normal operating voltages applied, the internal relay will energize (PICK-UP). When the voltages on any or all phases fall outside the pre-set Over/Under trip points for longer than the Release delay, the relay will de-energize (DROP-OUT). When line conditions return to normal, the PBC Series Monitor automatically resets and the internal relay energizes.The LED fault indicators aid in set up and system trouble-shooting glowing on fault condition. The LED indicators have an immediate response to voltage conditions and operate independently of the relay.The HYSTERESIS in each unit provides a differential of 4% between the PICK-UP and DROP-OUT trip points.Compare three-phase monitoring relays by voltage range, monitored faults, delays, reset behavior, relay outputs and mounting to find the right configuration for your equipment.
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
