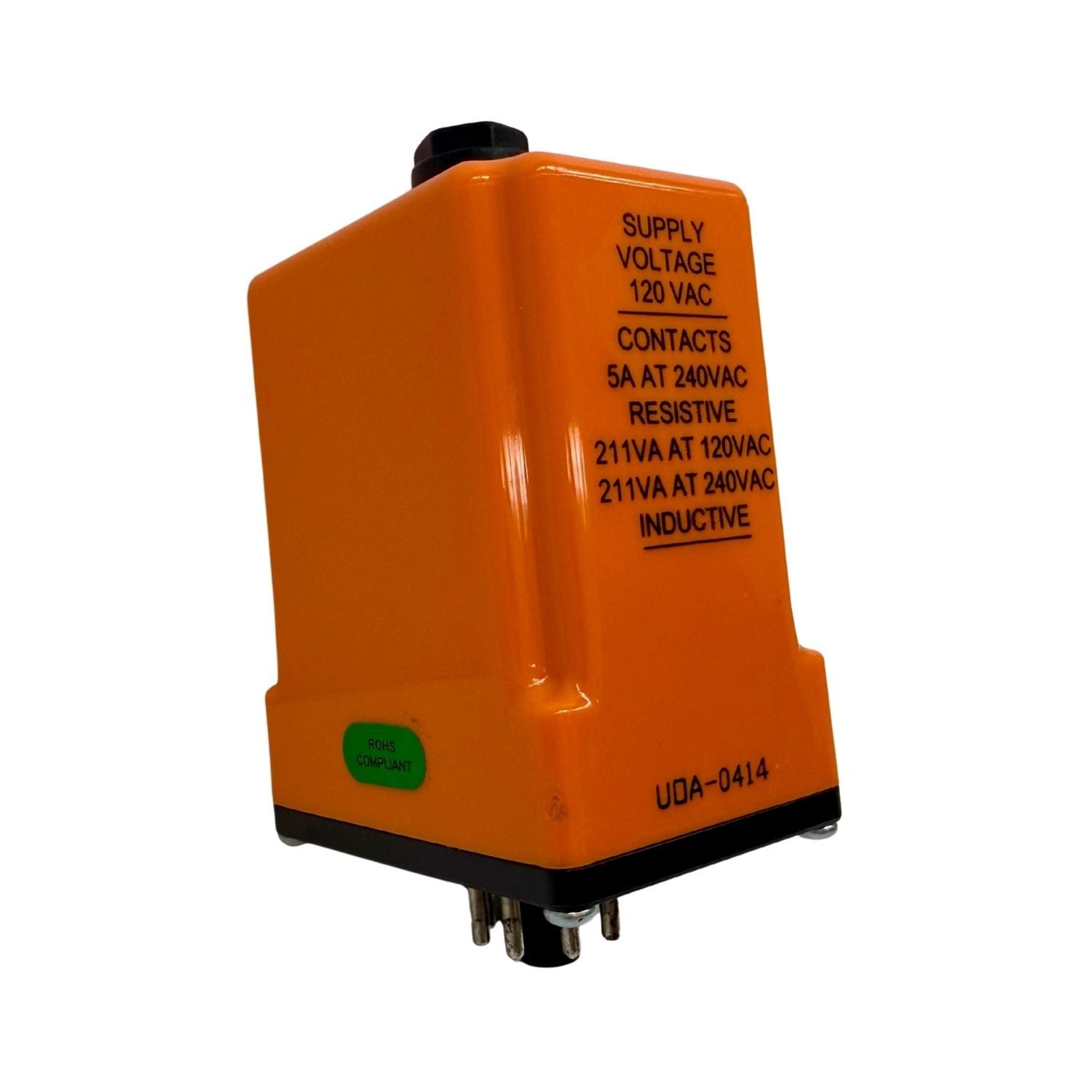

UOA-0414 Under Voltage Monitor Relay
The UOA-0414 Under Voltage Monitor Relay ensures reliable protection by continuously monitoring supply voltage. If voltage falls below the set Drop-Out level, the relay de-energizes. When voltage rises to the Pick-Up level, it automatically re-energizes. This design helps maintain safe, stable operation of control equipment under fluctuating power conditions.
Features:
- Wide Voltage Monitoring Range: Adjustable 102–135 VAC pick-up with 5V tracking drop-out.
- Fast Response Time: Operates in ~50 ms, releases in ~0.5 s.
- Durable DPDT Output Relay: 5A @ 240 VAC resistive load.
- Factory-Calibrated Security: Pre-set 100V drop-out with tamper seal.
- Compact Panel-Ready Design: Style “A” nylon dust cover.
- UL and CSA approved.
- Control panels
- Pumps & motors
- HVAC systems
- Industrial automation
- Lighting systems
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
